Introduction

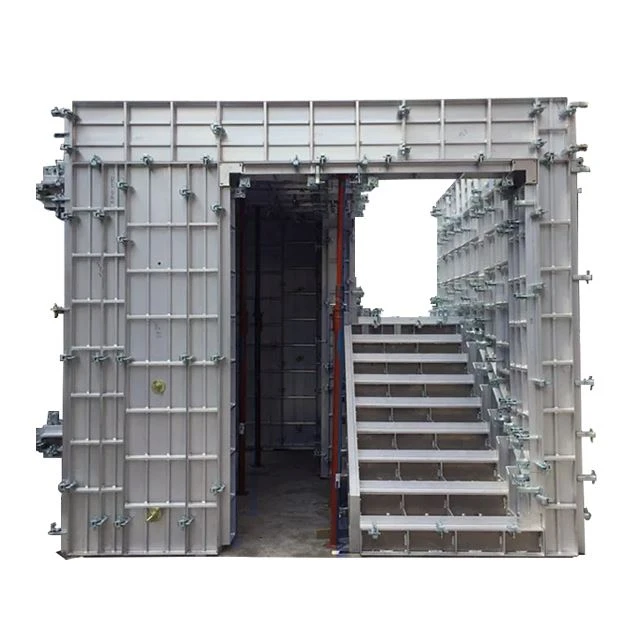

Our product is a highly efficient formwork system used in construction projects, designed to withstand high pressure during concrete pouring. And Engineering Aluminum Formwork is particularly suitable for the construction of high-rise buildings, bridges, tunnels, and other structures.
Customizable content
| Customization Item | Selectable Options / Parameters |
|---|---|
| Material Grade | Aluminum 6061-T6 / Aluminum 6082 / Aluminum 7075 |
| Aluminum Thickness (mm) | 3.5 / 4.0 / 4.5 / 5.0 |
| Bearing Capacity (KN/m²) | 30 / 35 / 40 / 45 / 50 / 55 |
| Designed Reuse Cycles | 300 / 350 / 400 / 450 |
| Formwork Type | Wall Panel / Slab Panel / Beam Panel / Column Panel / Custom-Shaped Panel |
| Wall Panel Size (mm) | Height: 2400 / 2700 / 2800 / 3000 / 3300 Width: 300 / 400 / 450 / 600 / 900 / 1200 |
| Slab Panel Size (mm) | Length: 900 / 1200 / 1500 / 1800 Width: 300 / 600 / 900 / 1200 |
| Beam Panel Size (mm) | Width: 200 / 250 / 300 / 350 / 400 / 450 Height: 300 / 350 / 400 / 500 / 600 |
| Column Panel Size (mm) | Section: 200×200 / 250×250 / 300×300 / 400×400 Height: 3000 / 3600 / 4200 |
| Wall Thickness (mm) | 100 / 120 / 150 / 180 / 200 / 250 |
| Panel Structure Type | Standard Flat / Reinforced Rib / High Load / Composite |
| Connection Method | Pin & Wedge / Flat Tie / Steel Tube Support / Adjustable Angle |
| Concrete Finish Requirement | No Plastering / Optional Plastering |
| Application Type | House / Apartment / Low-rise Residential / Mid-rise Residential / High-rise Residential |
| Optional Accessories | Connecting Pins / Wedges / Support Frames / Tie Rods / Base Plates / Positioning Brackets |
| Panel Machining Customization | Opening Position / Opening Size / Special Slot / Custom Geometric Pattern |
| Material | Aluminum 6061-T6 |
| Size | Variety of sizes according to project drawing |
| Application | Basement, Apartment, High-rise residential,Villas and low-rise houses |
Effect after removing the aluminum formwork
Packaging and transportation
