Product Introduction

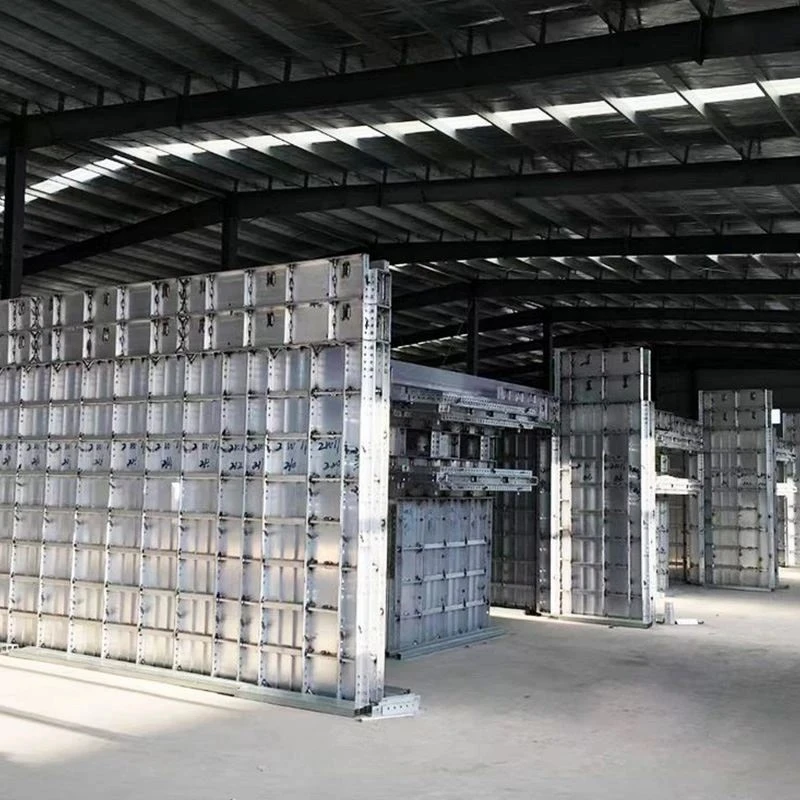

Load-Bearing Wall Aluminum Formwork System is a reusable modular concrete forming system designed for cast-in-place load-bearing wall formwork applications in residential, commercial, and infrastructure construction projects.

System Overview and Components

Aluminum wall panels
Extrusion-based components transferring fresh concrete pressure into waler and tie-rod system for distributed wall loading during casting cycles.

Corner formwork units
Structural transition modules maintaining geometric continuity and load transfer at wall intersections.

Waler and reinforcement system
Horizontal framework transferring hydrostatic concrete pressure into primary structural supports to reduce localized deformation.

Tie rod and locking system
Tension-based system maintaining alignment and resisting lateral concrete pressure during pouring and curing stages.

Early stripping support system (optional integration)
Temporary load transfer system enabling partial removal while maintaining residual structural stability during early curing.

Interface connectors and modular accessories
Standardized interfaces ensuring repeatable assembly alignment and system continuity across modular configurations.

Key Features

6061-T6 / 6082-T6 aluminum extrusion system for wall formwork applications
CNC-machined interfaces with controlled dimensional tolerance for repeatable assembly
60–80 kN/m² fresh concrete pressure capacity (project-dependent structural design)
Rib-reinforced panel geometry for hydrostatic pressure distribution in vertical wall casting
Modular corner and junction system ensuring geometric continuity across multi-storey wall layouts

Application Scope

High-rise residential towers
Affordable housing developments
Urban redevelopment housing projects
Large-scale apartment complexes
Government-backed residential construction programs
Infrastructure housing units

Engineering & OEM/ODM Capability

BIM-based load-bearing wall formwork layout design
Shop drawing development for fabrication and installation
Mold-based customized production system
OEM & ODM engineering manufacturing services
Custom design based on drawings or samples
Cross-project standardization for large-scale developments

Quality Control and Manufacturing Standards

Production System:
· Aluminum extrusion line for structural profiles used in modular wall formwork systems
· CNC machining centers for interface accuracy and repeatable assembly geometry
· Mold-based manufacturing system for standardized and project-specific components
· ERP-based production tracking for batch traceability and process control

Quality Assurance Processes:
· Incoming material verification including alloy grade and surface condition inspection
· Dimensional inspection using calibrated measurement systems for panel tolerance control
· Mechanical performance checks based on project-specific structural requirements
· Pre-shipment assembly verification for system compatibility and alignment accuracy
· Full traceability documentation covering production batch, material source, and inspection records

Certifications & Documentation (subject to project verification):
· ISO 9001 quality management system framework for production governance
· Mechanical testing reports for structural performance validation
· Material certification documentation for alloy compliance verification
· Export inspection reports for international engineering procurement review

FAQ

Q: What is the main advantage of a load-bearing wall aluminum formwork system compared to traditional formwork?

A: Reusable cycle-based system with higher dimensional stability in repetitive load-bearing wall construction, reducing labor cost and eliminating most wet finishing requirements.

Q: How is dimensional accuracy controlled in aluminum formwork systems?

A: Controlled via automated CNC machining centers with milling accuracy within ±0.5 mm and edge verticality control. Ensures tight panel fit, prevents slurry leakage, and reduces post-casting plastering in fair-faced concrete applications.

Q: What determines the reuse performance of aluminum formwork systems?

A: Material grade, CNC machining precision, and handling conditions. Typically supports 300+ reuse cycles under standard site maintenance and operational control.

Q: Is aluminum formwork suitable for high-rise projects?

A: Optimized for >15-storey repetitive wall construction systems where cycle efficiency and formwork amortization improve per-floor structural cost efficiency.

Q: Does aluminum formwork reduce construction time?

A: Cycle-based installation enables 3–5 day floor cycles in standardized wall systems depending on curing time and construction sequencing.
