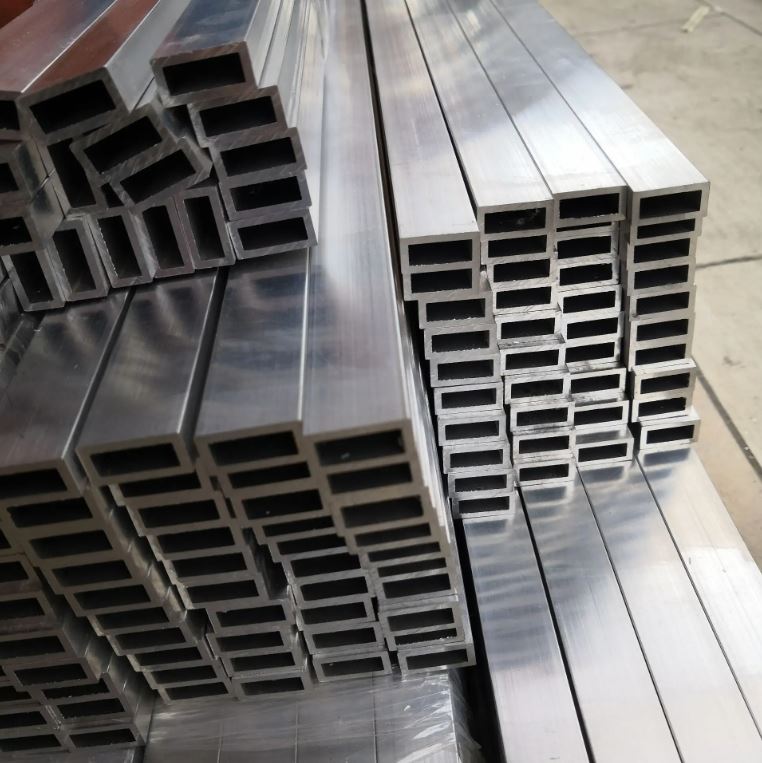

Aluminum profile
Aluminum profile is an aluminum product processed by a special process. It forms profiles of various cross-sectional shapes through extrusion, stretching and other forming methods. These profiles have excellent physical and chemical properties and are indispensable materials in modern industry and life.
| Material | Aluminum 6061-T6 |
| Detailed dimensions | Customize aluminum profiles of different sizes according to your needs |
| Standard mold quantity | 2000+ sets of standard molds in stock for you to choose from, saving your R&D costs |
| application | Transportation, construction, electrical, etc. |
| Maximum Width | 600 mm extrusion |
| info@hxhaluminum.com |
Customizable content
| Customization Category | Customizable Options |
|---|---|
| Aluminum Alloy | 6061; 6063 |
| Material Temper | T5; T6 |
| Extrusion Profile Type | Solid; Single hollow; Double hollow; Triple hollow or more |
| Cross-section Shape | Rectangular; Square; Circular; Elliptical; T-shape; L-shape; U-shape; H-shape; CAD-provided custom profile |
| Cross-section Width | ≤100 mm; 101–200 mm; 201–300 mm; 301–400 mm; 401–500 mm; 501–600 mm |
| Cross-section Height | ≤50 mm; 51–100 mm; 101–200 mm; 201–300 mm; 301–400 mm |
| Wall Thickness | 0.8 mm; 1.0 mm; 1.2 mm; 1.5 mm; 2.0 mm; 2.5 mm; 3.0 mm; ≥3.5 mm |
| Wall Thickness Configuration | Uniform wall thickness; Outer wall thickened; Inner rib thickened; Dual-thickness sections |
| Number of Cavities | 0 (solid); 1; 2; 3; 4 or more |
| Number of Internal Ribs | None; 1; 2; 3; 4 or more |
| Rib Orientation | Longitudinal; Transverse; Crossed |
| Standard Mold Usage | Use existing standard mold; Existing mold without modification |
| New Mold Development | Custom profile from provided CAD; Custom dimensions from specification |
| Profile Length | 3000 mm; 4000 mm; 5000 mm; 6000 mm; 6500 mm; 7000 mm |
| Cutting Type | Single-end straight; Double-end straight; 45° cut; Double-angle cut |
| Hole Type | None; Round; Oval; Square; Custom-shaped |
| Hole Diameter / Size | Φ5; Φ6; Φ8; Φ10; Φ12; Specified dimension |
| Slot Type | None; Straight slot; T-slot; U-slot; Multiple parallel slots |
| Surface Delivery | As-extruded; Mechanically straightened surface |
